Air conditioning systems Explained

Curbly’s Bruno Bornsztein shares the greatest average-Joe’s help guide to choosing an HVAC system you’ll find — at least, we think-so.

Right here I became standing in cellar of my brand new residence, taking into consideration the countless items that have to get done in the eight days left before I’m to maneuver in, and the HVAC guy’s offering me personally a history of any furnace producer going back to 1954, complete with individual anecdotes. Single-stage, multi-stage, variable speed, true modulating, power-vented, fixed force … when is this man likely to stop speaking?

And that means you don’t must feel dumb the next time you have to handle your HVAC (heating, ventilation and air-con) system, here’s the brief version.

The average Joe’s help guide to furnaces

Gas-fueled forced-air home heating is considered the most common enter america, plus it’s that which we have actually inside our home.

1. It pulls cold environment through the home and passes it around a hot steel package known as a temperature exchanger.

2. The warmth exchanger transfers heat from steel towards air.

3. A blower fan pushes the hot atmosphere through ducts that circulate it at home.

The furnace that came with the house is almost three decades old, and its particular heat exchanger is cracked; plus, it’s just about 60% effective. So there really was no question about replacing it. Browse this excellent article on HouseLogic if you’re trying to determine whether to replace or repair your furnace.

Here’s our old furnace:

So, what kind of furnace do I have?

Despite the ramblings of my HVAC contractor, the choices weren’t that complicated.

First off, we wanted a high-efficiency unit. It is possible to however get 80percent effectiveness furnaces, and some men and women choose their particular simplified design (fewer things to make a mistake, the reasoning goes). But 90per cent and greater effectiveness furnaces have been in existence for a long time today, so a lot of the reliability dilemmas are gone. Plus, our energy organization provides a rebate for setting up them. We decided on a 96percent efficient design.

The Goldilocks contrast of 3 furnace kinds

Furnaces can be single-stage, two-stage, or modulating. They pattern off and on based on in which you set the thermostat. So the temperature in the house is always vacillating between high and low points, like this:

1. Single-stage is similar to a kitchen stove where the knobs have only one environment: large. Since a single-stage furnace can only just be on or off, the end result is higher peaks and valleys in temperature, and more inefficiency.

2. Two-stage has two settings, large and reasonable. They’re better than single-stage because they have a low-burning environment that keeps the warmth from losing too far below your desired point. And they’re better simply because they maintain the atmosphere heat from differing whenever a single stage.

3. A modulating furnace is much more like your real stove; it may adjust the fire to your point between off and high. It continuously adjusts its flame to try and keep consitently the air heat constant. The theory is that, this causes higher comfort and much better performance. In practice, but modulating furnaces tend to be pretty brand new and unproven. Every contractor I talked to seemed reluctant about all of them, because technology and parts are still brand-new.

As Goldilocks might state, the two-stage furnace was just right for all of us.

Finally, we chosen a variable-speed blower, meaning the furnace adjusts the fan speed inside increments to precisely control the atmosphere flow throughout the house (unlike single-speed blowers, which could only go on or off). Such as the modulating furnaces, they're designed to supply better convenience and performance. Plus, simply because they convert AC capacity to DC, they normally use less electricity (DC power is more efficient).

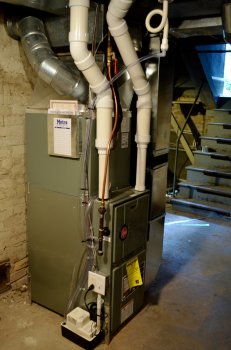

Right here she is:

How about the ductwork?

You could recall from last week that people had to have our old asbestos-laden ductwork removed — a slight setback to the schedule and budget, but well worth the peace of mind. Fortunately, our HVAC contractor quoted us an acceptable price for putting in new ductwork, therefore we rolled that into the HVAC project.

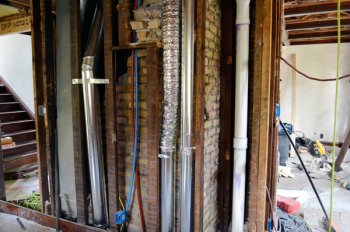

Ductwork’s quite simple (except for some nitpicky approval and fireblocking — products that impede fire in hidden places), therefore there’s not too much to say about it … except, look just how brilliant and shiny its!
